NPT Female to Type-M Male Adapter
NPT Female to Type-M Male Adapter

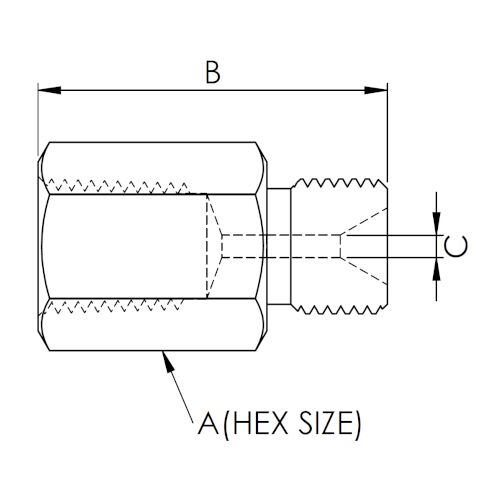

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1 NPT FEM X 1 5/16 TYPE M | 16NF21TM10 | 1.75 | 2.01 | 0.687 | 0.78 | |
| 1/4 NPT FEM X 9/16 TYPE M | 4NF09TM15 | 0.75 | 1.45 | 0.093 | 0.12 | |
| 1 NPT FEM X 1 TYPE M | 16NF16TM10 | 1.75 | 2.07 | 0.39 | 0.8 | |
| 1 NPT FEM X 3/4 TYPE M | 16NF12TM10 | 1.75 | 2.08 | 0.312 | 0.77 | |
| 1 NPT FEM X 9/16 TYPE M | 16NF09TM10 | 1.75 | 2 | 0.093 | 0.78 | |
| 3/4 NPT FEM X 1 TYPE M | 12NF16TM10 | 1.375 | 1.83 | 0.39 | 0.45 | |
| 3/4 NPT FEM X 3/4 TYPE M | 12NF12TM10 | 1.375 | 1.83 | 0.312 | 0.41 | |
| 3/4 NPT FEM X 9/16 TYPE M | 12NF09TM10 | 1.375 | 1.75 | 0.093 | 0.42 | |
| 1/2 NPT FEM X 1 TYPE M | 8NF16TM15 | 1.125 | 1.79 | 0.39 | 0.33 | |
| 1/2 NPT FEM X 3/4 TYPE M | 8NF12TM15 | 1.125 | 1.8 | 0.312 | 0.29 | |
| 1/2 NPT FEM X 9/16 TYPE M | 8NF09TM15 | 1.125 | 1.7 | 0.093 | 0.28 | |
| 3/8 NPT FEM X 1 TYPE M | 6NF16TM15 | 1 | 1.57 | 0.39 | 0.26 | |
| 3/8 NPT FEM X 3/4 TYPE M | 6NF12TM15 | 0.875 | 1.58 | 0.312 | 0.17 | |
| 3/8 NPT FEM X 9/16 TYPE M | 6NF09TM15 | 0.875 | 1.49 | 0.093 | 0.15 | |
| 1/4 NPT FEM X 3/4 TYPE M | 4NF12TM15 | 0.75 | 1.53 | 0.312 | 0.14 |
