NPT Male to High Pressure Female Adapter
NPT Male to High Pressure Female Adapter
108 NPT MALE X HP FEMALE
MASTER LIBRARY

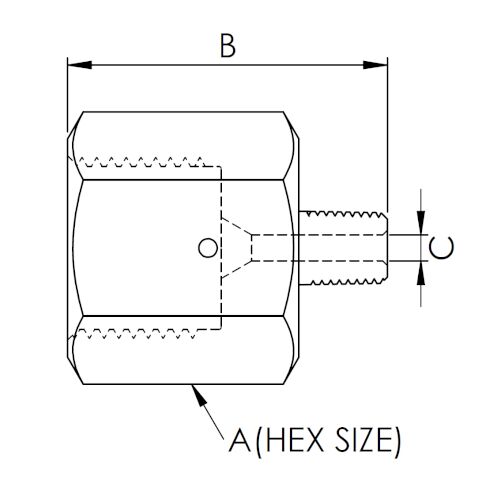

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/16 NPT X 3/8 HP FEM | 1N06HF15 | 1 | 1.36 | 0.11 | 0.17 | |
| 1/8 NPT X 1/4 HP FEM | 2N04HF15 | 0.75 | 1.22 | 0.086 | 0.13 | |
| 1/8 NPT X 3/8 HP FEM | 2N06HF15 | 1 | 1.41 | 0.12 | 0.18 | |
| 1/4 NPT X 1/4 HP FEM | 4N04HF15 | 0.75 | 1.32 | 0.086 | 0.14 | |
| 1/4 NPT X 3/8 HP FEM | 4N06HF15 | 1 | 1.51 | 0.12 | 0.19 | |
| 1/4 NPT X 9/16 HP FEM | 4N09HF15 | 1.375 | 1.7 | 0.187 | 0.36 | |
| 3/8 NPT X 1/4 HP FEM | 6N04HF15 | 0.75 | 1.37 | 0.086 | 0.16 | |
| 3/8 NPT X 3/8 HP FEM | 6N06HF15 | 1 | 1.57 | 0.12 | 0.21 | |
| 3/8 NPT X 9/16 HP FEM | 6N09HF15 | 1.375 | 1.76 | 0.182 | 0.38 | |
| 1/2 NPT X 1/4 HP FEM | 8N04HF15 | 0.875 | 1.52 | 0.086 | 0.2 | |
| 1/2 NPT X 3/8 HP FEM | 8N06HF15 | 1 | 1.72 | 0.12 | 0.25 | |
| 1/2 NPT X 9/16 HP FEM | 8N09HF15 | 1.375 | 1.9 | 0.182 | 0.42 | |
| 3/4 NPT X 1/4 HP FEM | 12N04HF10 | 1.125 | 1.62 | 0.086 | 0.35 | |
| 3/4 NPT X 3/8 HP FEM | 12N06HF10 | 1.125 | 1.82 | 0.12 | 0.37 | |
| 3/4 NPT X 9/16 HP FEM | 12N09HF10 | 1.375 | 2.08 | 0.182 | 0.52 | |
| 1 NPT X 1/4 HP FEM | 16N04HF10 | 1.375 | 1.9 | 0.086 | 0.65 | |
| 1 NPT X 3/8 HP FEM | 16N06HF10 | 1.375 | 2.09 | 0.12 | 0.7 | |
| 1 NPT X 9/16 HP FEM | 16N09HF10 | 1.375 | 2.28 | 0.182 | 0.66 |
