NPT Female to BSP Male Adapter
NPT Female to BSP Male Adapter

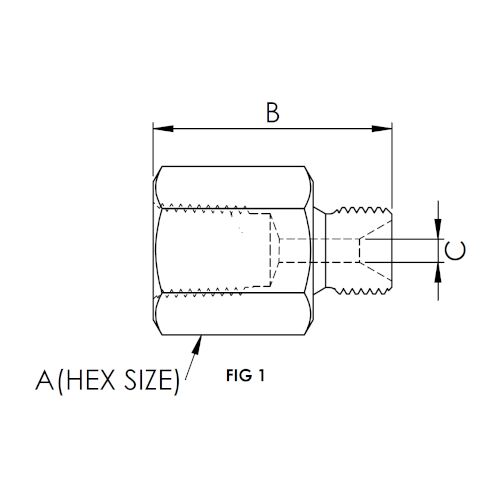

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/4 NPT FEM X 1/4 BSP INTERNAL | 4NF04B15 | 0.875 | 1.43 | 0.14 | 0.16 | |
| 3/8 NPT FEM X 3/8 BSP INTERNAL | 6NF06B15 | 1 | 1.45 | 0.14 | 0.21 | |
| 1/2 NPT FEM X 1/2 BSP INTERNAL | 8NF08B15 | 1.25 | 1.79 | 0.203 | 0.40 | |
| 1/4 NPT FEM X 1/4 BSP EXTERNAL | 4NF04BEXT15 | 0.875 | 1.67 | 0.14 | 0.17 |
