NPT Female to High Pressure Male Adapter
NPT Female to High Pressure Male Adapter
109 NPT FEMALE X HP MALE
MASTER LIBRARY

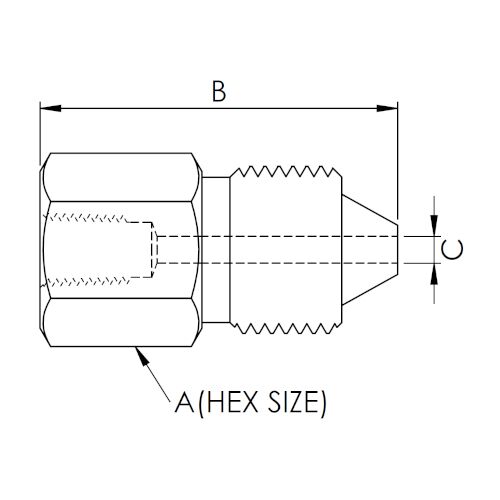

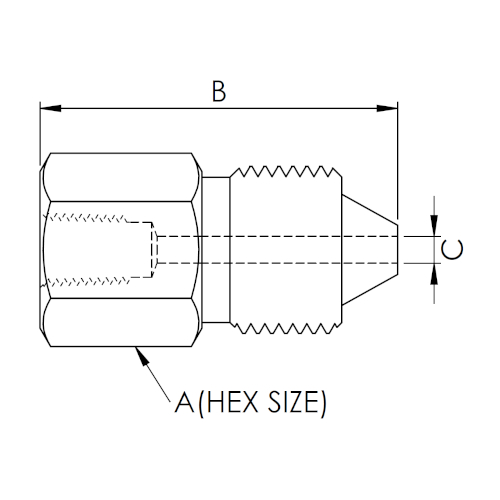

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/16 NPT FEM X 3/8 HP | 1NF06H15 | 0.75 | 1.6 | 0.12 | 0.17 | |
| 1/8 NPT FEM X 1/4 HP | 2NF04H15 | 0.625 | 1.39 | 0.086 | 0.09 | |
| 1/8 NPT FEM X 3/8 HP | 2NF06H15 | 0.75 | 1.62 | 0.12 | 0.16 | |
| 1/8 NPT FEM X 9/16 HP | 2NF09H15 | 1.125 | 1.73 | 0.182 | 0.41 | |
| 1/4 NPT FEM X 1/4 HP | 4NF04H15 | 0.75 | 1.61 | 0.086 | 0.13 | |
| 1/4 NPT FEM X 3/8 HP | 4NF06H15 | 0.75 | 1.83 | 0.12 | 0.17 | |
| 1/4 NPT FEM X 9/16 HP | 4NF09H15 | 1.125 | 1.95 | 0.182 | 0.46 | |
| 3/8 NPT FEM X 1/4 HP | 6NF04H15 | 0.875 | 1.64 | 0.086 | 0.16 | |
| 3/8 NPT FEM X 3/8 HP | 6NF06H15 | 0.875 | 1.86 | 0.12 | 0.2 | |
| 3/8 NPT FEM X 9/16 HP | 6NF09H15 | 1.125 | 1.97 | 0.182 | 0.44 | |
| 1/2 NPT FEM X 1/4 HP | 8NF04H15 | 1.125 | 1.86 | 0.086 | 0.28 | |
| 1/2 NPT FEM X 3/8 HP | 8NF06H15 | 1.125 | 2.09 | 0.12 | 0.33 | |
| 1/2 NPT FEM X 9/16 HP | 8NF09H15 | 1.125 | 2.2 | 0.182 | 0.45 | |
| 3/4 NPT FEM X 3/8 HP | 12NF06H10 | 1.375 | 2.12 | 0.12 | 0.45 | |
| 3/4 NPT FEM X 9/16 HP | 12NF09H10 | 1.375 | 2.24 | 0.182 | 0.57 | |
| 1 NPT FEM X 9/16 HP | 16NF09H10 | 1.75 | 2.48 | 0.182 | 0.93 |
