NPT Male to High Pressure Male Adapter
NPT Male to High Pressure Male Adapter

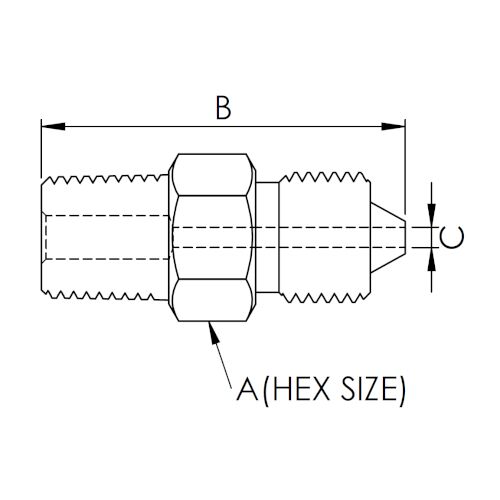

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/4 NPT X 1/4 HP | 4N04H15 | 0.625 | 1.57 | 0.086 | 0.09 | |
| 1/4 NPT X 3/8 HP | 4N06H15 | 0.75 | 1.8 | 0.12 | 0.15 | |
| 1/4 NPT X 9/16 HP | 4N09H15 | 1.125 | 2.05 | 0.182 | 0.38 | |
| 3/8 NPT X 1/4 HP | 6N04H15 | 0.75 | 1.62 | 0.086 | 0.13 | |
| 3/8 NPT X 3/8 HP | 6N06H15 | 0.75 | 1.85 | 0.12 | 0.17 | |
| 3/8 NPT X 9/16 HP | 6N09H15 | 1.125 | 2.1 | 0.182 | 0.4 | |
| 1/2 NPT X 1/4 HP | 8N04H15 | 0.875 | 1.77 | 0.086 | 0.19 | |
| 1/2 NPT X 3/8 HP | 8N06H15 | 0.875 | 2 | 0.12 | 0.23 | |
| 1/2 NPT X 9/16 HP | 8N09H15 | 1.125 | 2.25 | 0.182 | 0.44 | |
| 3/4 NPT X 1/4 HP | 12N04H10 | 1.125 | 2 | 0.086 | 0.33 | |
| 3/4 NPT X 3/8 HP | 12N06H10 | 1.125 | 2.23 | 0.12 | 0.37 | |
| 3/4 NPT X 9/16 HP | 12N09H10 | 1.125 | 2.35 | 0.182 | 0.49 | |
| 1 NPT X 9/16 HP | 16N09H10 | 1.375 | 2.64 | 0.182 | 0.75 |
