NPT Male to JIC Male Adapter
NPT Male to JIC Male Adapter

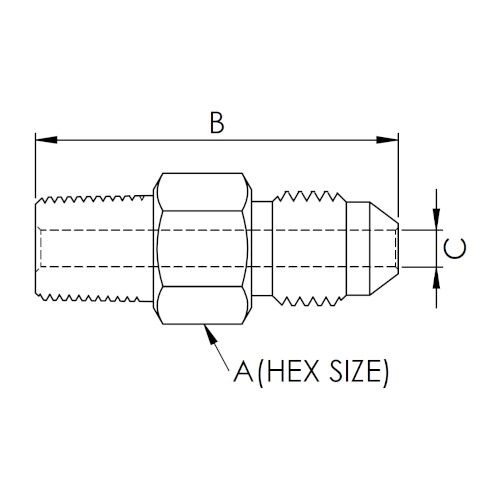

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/8 NPT X 1/4 JIC | 2N04J15 | 0.5 | 1.39 | 0.14 | .05 | |
| 1/4 NPT X 1/4 JIC | 4N04J15 | 0.625 | 1.49 | 0.14 | .08 | |
| 1/4 NPT X 3/8 JIC | 4N06J15 | 0.625 | 1.49 | 0.187 | .09 | |
| 1/4 NPT X 1/2 JIC | 4N08J15 | 0.75 | 1.59 | 0.187 | 0.13 | |
| 3/8 NPT X 1/4 JIC | 6N04J15 | 0.75 | 1.54 | 0.14 | 0.11 | |
| 3/8 NPT X 3/8 JIC | 6N06J15 | 0.75 | 1.54 | 0.203 | 0.12 | |
| 3/8 NPT X 1/2 JIC | 6N08J15 | 0.75 | 1.64 | 0.312 | 0.14 | |
| 1/2 NPT X 1/4 JIC | 8N04J15 | 0.875 | 1.69 | 0.14 | 0.17 | |
| 1/2 NPT X 3/8 JIC | 8N06J15 | 0.875 | 1.69 | 0.203 | 0.18 | |
| 1/2 NPT X 1/2 JIC | 8N08J15 | 0.875 | 1.79 | 0.312 | 0.20 | |
| 3/4 NPT X 3/4 JIC | 12N12J10 | 1.125 | 2.22 | 0.5 | 0.40 | |
| 3/4 NPT X 1 JIC | 12N16J10 | 1.375 | 2.4 | 0.55 | 0.58 | |
| 1 NPT X 1/2 JIC | 16N08J10 | 1.375 | 2.3 | 0.312 | 0.59 | |
| 1 NPT X 3/4 JIC | 16N12J10 | 1.375 | 2.51 | 0.5 | 0.65 | |
| 1 NPT X 1 JIC | 16N16J10 | 1.375 | 2.56 | 0.687 | 0.68 | |
| 3/4 NPT X 3/8 JIC | 12N06J10 | 1.125 | 1.92 | 0.203 | 0.32 | |
| 3/4 NPT X 1/2 JIC | 12N08J10 | 1.125 | 2.01 | 0.312 | 0.34 |
