Medium Pressure Male to JIC Male Adapter
Medium Pressure Male to JIC Male Adapter

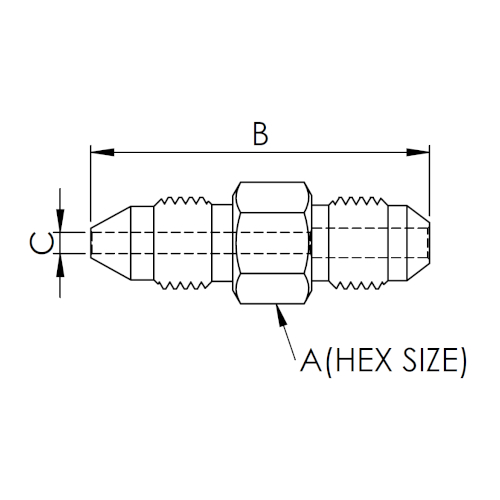

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/4 MP Male to 1/4 JIC Male Adapter | 4M04J15 | 0.500 | 1.610 | 0.101 | 0.050 | |
| 1/4 MP Male to 3/8 JIC Male Adapter | 4M06J15 | 0.625 | 1.620 | 0.101 | 0.080 | |
| 1/4 MP Male to 1/2 JIC Male Adapter | 4M08J15 | 0.750 | 1.710 | 0.101 | 0.120 | |
| 3/8 MP Male to 1/4 JIC Male Adapter | 6M04J15 | 0.625 | 1.750 | 0.140 | 0.080 | |
| 3/8 MP Male to 3/8 JIC Male Adapter | 6M06J15 | 0.625 | 1.750 | 0.196 | 0.090 | |
| 3/8 MP Male to 1/2 JIC Male Adapter | 6M08J15 | 0.750 | 1.850 | 0.196 | 0.130 | |
| 9/16 MP Male to 1/4 JIC Male Adapter | 9M04J15 | 0.875 | 1.940 | 0.140 | 0.170 | |
| 9/16 MP Male to 3/8 JIC Male Adapter | 9M06J15 | 0.875 | 1.940 | 0.203 | 0.180 | |
| 9/16 MP Male to 1/2 JIC Male Adapter | 9M08J15 | 0.875 | 2.040 | 0.307 | 0.200 | |
| 9/16 MP Male to 5/8 JIC Male Adapter | 9M10J10 | 0.875 | 2.140 | 0.307 | 0.220 | |
| 9/16 MP Male to 3/4 JIC Male Adapter | 9M12J10 | 1.125 | 2.370 | 0.307 | 0.360 | |
| 9/16 MP Male to 1 JIC Male Adapter | 9M16J10 | 1.375 | 2.550 | 0.307 | 0.550 | |
| 3/4 MP Male to 3/8 JIC Male Adapter | 12M06J15 | 1.125 | 2.250 | 0.203 | 0.350 | |
| 3/4 MP Male to 1/2 JIC Male Adapter | 12M08J15 | 1.125 | 2.350 | 0.312 | 0.360 | |
| 3/4 MP Male to 3/4 JIC Male Adapter | 12M12J10 | 1.125 | 2.560 | 0.430 | 0.460 | |
| 3/4 MP Male to 1 JIC Male Adapter | 12M16J10 | 1.375 | 2.73 | 0.43 | 0.610 | |
| 1 MP Male to 1/2 JIC Male Adapter | 16M08J15 | 1.125 | 3.71 | 0.312 | 0.570 | |
| 1 MP Male to 3/4 JIC Male Adapter | 16M12J10 | 1.125 | 3.92 | 0.5 | 0.630 | |
| 1 MP Male to 1 JIC Male Adapter | 16M16J10 | 1.375 | 4.1 | 0.531 | 0.800 |
