High Pressure Male to BSP Male Adapter
High Pressure Male to BSP Male Adapter

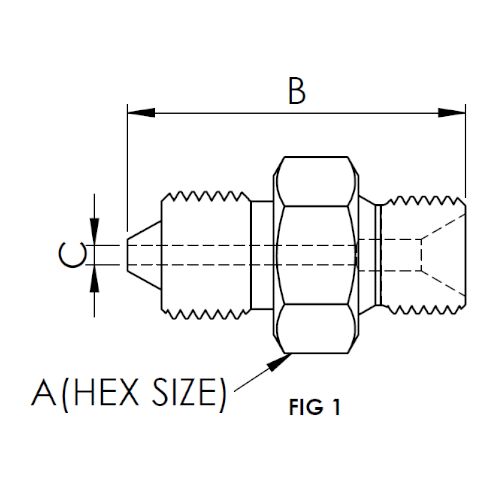

| DESCRIPTION | PL PART # | (A) Hex Ø | (B) OAL | (C) Thru Ø | WEIGHT (LBS) | QUOTE |
|---|---|---|---|---|---|---|
| 1/4 HP Male to 1/4 BSP Internal Male Adapter | 4H04B30 | 0.75 | 1.49 | 0.086 | 0.100 | |
| 1/4 HP Male to 3/8 BSP Internal Male Adapter | 4H06B30 | 0.875 | 1.49 | 0.086 | 0.130 | |
| 3/8 HP Male to 3/8 BSP Internal Male Adapter | 6H06B30 | 0.875 | 1.72 | 0.12 | 0.180 | |
| 9/16 HP Male to 1/4 BSP Internal Male Adapter | 9H04B30 | 1.125 | 1.97 | 0.14 | 0.380 | |
| 9/16 HP Male to 1/2 BSP Internal Male Adapter | 9H08B30 | 1.125 | 2.09 | 0.182 | 0.420 | |
| 1/4 HP Male to 1/4 BSP External Male Adapter | 4H04BEXT30 | 0.75 | 1.74 | 0.086 | 0.110 |
